SWITCH POWER NANOCRYSTALLINE CORES

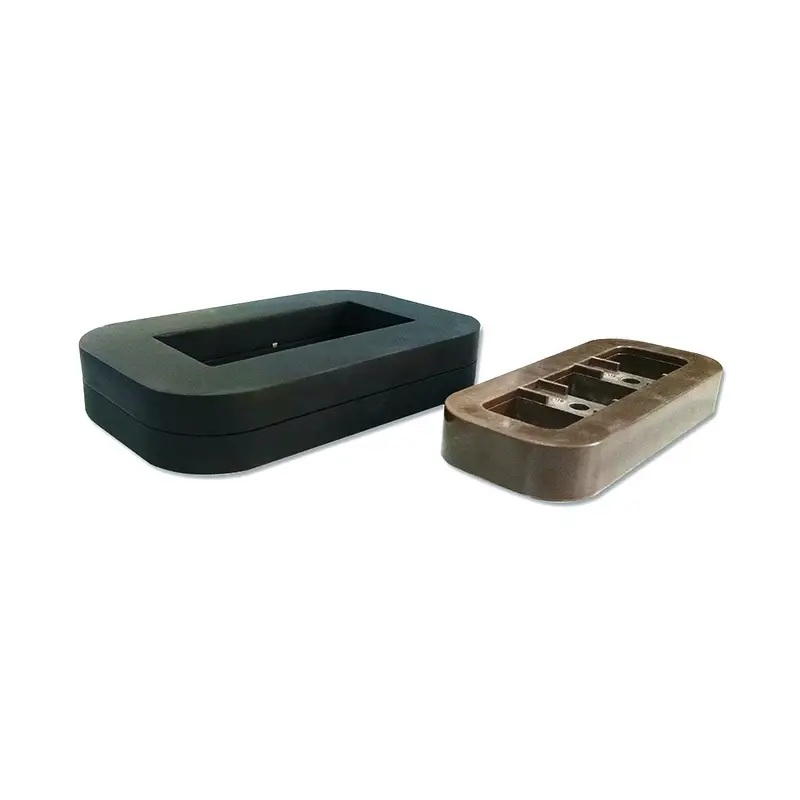

Nanocrystalline core for high-power transformers

Transmart Part number	Core dimensions		Weight mFe g	Permeability ( µ at 10kHz )		AL 10 kHz 100 kHz nominal μH	Saturation current typical 10 kHz 100 kHz A	Case material PBT (130℃)
Transmart Part number	Core dimensions da x di x h mm x mm x mm	Finished core size OD ID H mm x mm x mm	Weight mFe g	Specified value	Design refer	AL 10 kHz 100 kHz nominal μH	Saturation current typical 10 kHz 100 kHz A	Case material PBT (130℃)
NH-0002	50x32x20	54x28x24	125.0	65600 ≤ µ` ≤ 127000	87,000	25.5 6.4	0.2 0.4	PBT
NH-0003	64x40x20	66x37x23	215.0	72000 ≤ µ` ≤ 139000	97,000	28.0 6.8	0.2 0.4	PBT
NH-0004	70x40x20	75x36x25	265.0	42200 ≤ µ` ≤ 81500	56,000	10.0 3.6	0.4 0.8	PBT
NH-0005	70x40x25	72x37x28	352.0	72000 ≤ µ` ≤ 139000	94,000	27.0 6.7	0.3 0.5	PBT
NH-0006	80x50x25	85x44x30	416.0					PBT
NH-0010	100x50x25	105x45x44	805.0	72000 ≤ µ`≤ 135000	97,000	43.0 10.1	0.3 0.6	PBT
NH-0011	100x60x20	105x56x23	540.0	18000 ≤ µ` ≤ 35000	23,700	11.7 6.5	1.2 1.7	PBT
NH-0014	105x60x30	110x57x35	957.0	72000 ≤ µ` ≤ 135000	96,000	30.0 6.9	0.3 0.7	PBT
NH-0015	105x60x40	110x57x34	1267.0	72000 ≤ µ` ≤ 130000	96,000	36.1 8.8	0.4 0.7	PBT
NH-0018	110x60x20	116x55x25	725.0	72000 ≤ µ` ≤ 135000	97,000	55.2 13.6	0.4 0.7	PBT
NH-0019	110x60x25	115x54x30	907.0	18100 ≤ µ` ≤35000	23,700	14.3 9.1	1.4 2.1	PBT
NH-0020	110x60x30	115x55x35	1081.0	60000 ≤ µ` ≤ 116000	80,000	28.4 7.3	0.6 1.1	PBT
NH-0021	120x60x30	125x57x35	1384.0	72000 ≤ µ` ≤ 135000	95,000	65.5 15.5	0.4 0.9	PBT
NH-0022	120x70x20	125x67x25	811.0	15000 ≤ µ` ≤ 35000	24,300	17.0 11.5	1.7 2.6	PBT
NH-0023	120x70x25	125x67x30	1014.0	3300 ≤ µ` ≤ 6400 ( 100kHz )	4,400	3.2 3.1	9.3 9.6	PBT
NH-0024	120x70x30	125x67x35	1217.0	72000 ≤ µ` ≤ 135000	103,000	59.3 14.0	0.5 1.0	PBT
NH-0025	120x70x40	125x67x47	1538.0	72000 ≤ µ` ≤ 135000	25,500	15.5 11.1	2.1 3.1	PBT
NH-0026	130x80x40	136x76x45	1793.0	3280 ≤ µ` ≤ 6400 ( 100kHz )	4,400	2.9 2.8	11.4 11.8	PBT
NH-0027	130x80x50	136x76x55	2242.0	72000 ≤ µ` ≤ 135000	96,000	88.0 20.0	0.5 1.1	PBT
NH-0029	130x90x50	136x85x56	1879.0	72000 ≤ µ` ≤ 135000	95,000	47.2 11.1	0.8 1.5	PBT
NH-0035	80x50x20	85x44x25	332.0	15000 ≤ µ` ≤ 29000	20,000	12.2 7.9	3.7 5.1	PBT
NH-0037	130x80x60	136x76x66	2700.0	3160 ≤ µ` ≤ 6300 ( 100kHz )	4,300	2.3 2.2	16.6 17.1	PBT

Nanocrystalline Core Toroidal Transformer Core for High-power Transformers 5

NANOCRYSTALLINE

CORE FOR HIGH-POWER TRANSFORMERS

Nanocrystalline based on nanocrystals less than 10 nanometer in their structure, therefore cores made by nanocrystalline are much superior than the other soft magnetic materials.

APPLICATIONS

Inverter welding equipments

X-ray, laser, communication power supplies / UPS
High frequency induction heating power supplies / Charging power supplies
