POLE MOUNTED TRANSFORMER CORE

A pole-mounted transformer is a type of distribution transformer that is mounted on a utility pole. It is used to step down the voltage of electrical power from high voltage transmission lines to a lower voltage suitable for distribution to homes, businesses, and other end-users. The pole-mounted transformer typically consists of a transformer unit, which includes the core and windings, mounted on top of a pole. Pole-mounted transformers are commonly used in rural areas or areas with distributed electrical infrastructure.

Common Core Types Used In Pole-mounted Tranformer

There are several core types used in pole-mounted transformers

Distributed Gap Core, Wound Core, Unicore for Pole Mounted Transformers 9

Shell-type core

This type of core consists of two cylindrical or toroidal-shaped cores that surround the windings.

Distributed Gap Core, Wound Core, Unicore for Pole Mounted Transformers 10

Core-type core

This type of core has a rectangular or E-shaped core that encloses the windings.

Distributed Gap Core, Wound Core, Unicore for Pole Mounted Transformers 11

Toroidal core

This type of core is donut-shaped.

Distributed Gap Core, Wound Core, Unicore for Pole Mounted Transformers 12

Other variations

Depending on specific requirements and manufacturer preferences.

Transmart designs and manufactures two popular types cores, one is Distributed gap wound core, the other is a Folded Octagonal Core or called Unicore. Both are for pole-mounted distribution transformers, ranging from 5KVA to 500KVA, single phase and three phase available.

TRANSMART

TRANSMART POPULAR TYPES CORE-1

DISTRIBUTED GAP

WOUND CORE

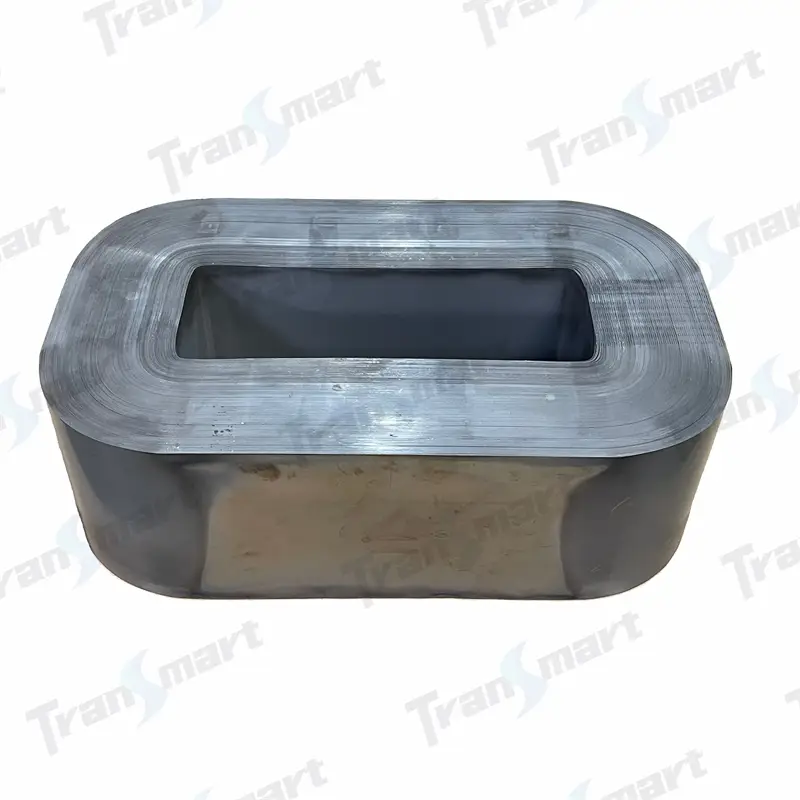

is a type of core used in pole-mounted transformers. It is a variation of the shell-type core, where the windings are distributed along the core with gaps between them. This design helps to reduce losses and improve the performance of the transformer. Distributed gap wound cores are often employed in high-power distribution transformers.

TRANSMART POPULAR TYPES CORE-2

FOLDED OCTAGONAL CORE /

UNICORE

The core is folded by special design machines of great precision to achieve the best no-load losses.
