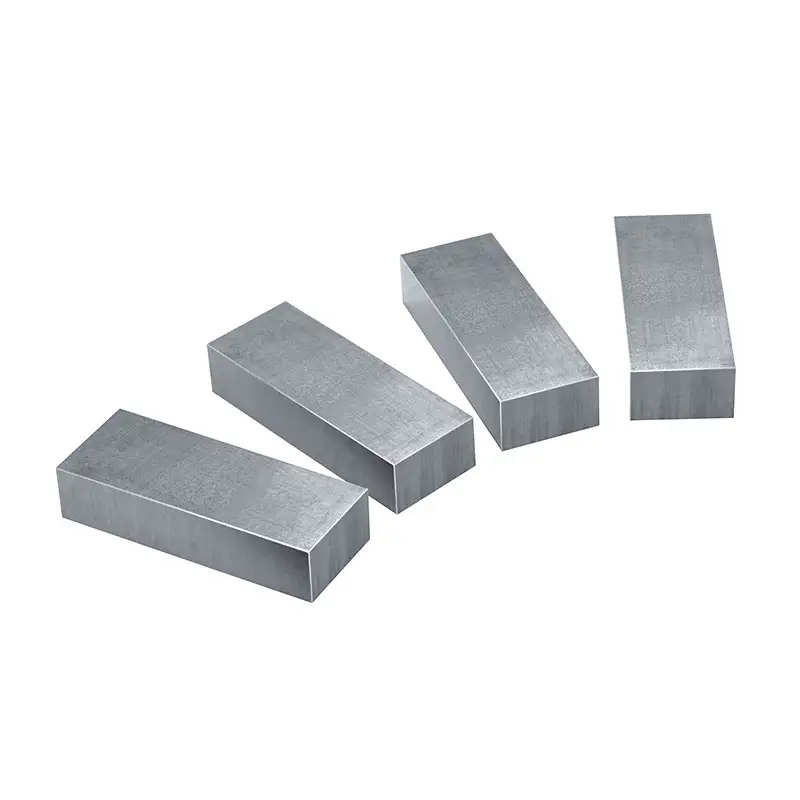

Amorphous Magnetic Core Block Cores Inductor Core for Motor Drive 1

Amorphous Magnetic Core Block Cores Inductor Core for Motor Drive 2

Amorphous Magnetic Core Block Cores Inductor Core for Motor Drive 3

Amorphous Magnetic Core Block Cores Inductor Core for Motor Drive

Brand:

Transmart

Model：:

CABC Series

MOQ:

300PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM,ODM,Customized

Inquiry

Write a Review

ELECTROMAGNETIC CHARACTERISTICS

Amorphous Block Core

Saturation flux density Bs	1.56T (Ref.)
Saturation magnetstriction λs	27ppm
Core lose Pcm	2.3 W/kg (Ref.) at 10 kHz, 0.1T
Curie temparature Tc	392 deg.C (Ref.）
Maximum operation temperature	130 deg.C

Amorphous Magnetic Core Block Cores Inductor Core for Motor Drive 4

AMORPHOUS BLOCK CORE

Amorphous block cores made of Amorphous soft magnetic material 1K101, they are suitable

for inductors especially for those used in high-power capacity. These cores contribute to improve efficiency of inductors.

APPLICATIONS

BLOCK CORE

1.Medium frequency AC inductor for alternative energy generator
2.Motor drive
3.DC/DC converter
4.Reactor for PV inverter
5.Filter reactor for high-frequency switching power supply
