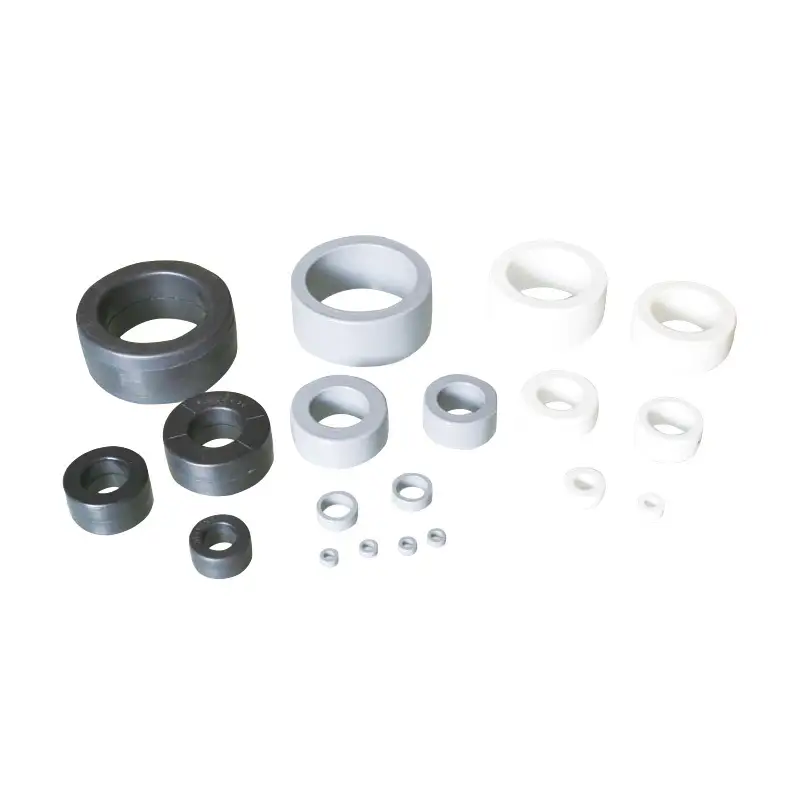

Amorphous Core High Permeability Co-based Amorphous Toroidal Core 1

Amorphous Core High Permeability Co-based Amorphous Toroidal Core 2

Amorphous Core High Permeability Co-based Amorphous Toroidal Core

Brand:

Transmart

Model：:

CACA Series

MOQ:

200 PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM,ODM,Customized

Inquiry

Write a Review

MAGNETIC PROPERTIES

Co-based Amorphous Core

Item	Reference value
Saturation flux density (25℃)	0.58 T
Saturation magnetostrictive coefficient(λs)	<0.2x10-6
Bipolar flux density (25℃)	1.15 T
Bipolar flux density (90℃)	1 T
Rectangular ratio Br/Bs	≥96%
Curie Temperature, (Tc)	240℃
Continuous operation temperature	90℃

Core Dimensions	Finished core dimensions (mm)			Effective cross section	Mean effective pathlength	Core weight	Total flux （25℃）	Total flux （90℃）	Effective winding Area	Mean length of copper coil	Heat transfer Resistance	Our Part No.	VAC Part Number
	O.D.	I.D.	H	Afe cm2	Ife cm	mFe g	Φ ss μ Wb	Φ ss, 90℃ μ Wb	ACucm2	Icu cm	Rth K/W
10x8x4	11.6	6.5	5.1	0.032	2.83	0.7	3.7	3.2	0.082	2.01	56	CACA-01-0001-H	W534
10.1x6.9x4.5	11.6	5.5	6.0	0.058	2.67	1.2	6.7	5.8	0.059	2.24	57	CACA-01-0002-H	W663
12.8x9.5x3.2	14.7	7.9	4.8	0.042	3.50	1.1	4.8	4.2	0.121	2.23	44	CACA-01-0003-H	W464
12x8x4.5	14.0	6.6	6.2	0.070	3.14	1.7	8.1	7.0	0.085	2.45	47	CACA-01-0004-H	W547
12.5x10x5	14.0	8.5	6.8	0.050	3.53	1.4	5.8	5.0	0.140	2.56	42	CACA-01-0005-H	W535
14x8x4.5	15.5	6.5	5.7	0.108	3.46	2.9	12.4	10.8	0.082	2.53	44	CACA-01-0006-H	W481
15x10x4.5	17.1	7.9	6.5	0.090	3.93	2.7	10.4	9.0	0.121	2.84	37	CACA-01-0007-H	W813
10.7x8.2x4.5	14.0	6.6	6.2	0.045	2.97	1	5.2	4.5	0.085	2.45	47	CACA-01-0008-H	W728
16x10x6	17.9	8.2	8.2	0.144	4.08	4.5	16.6	14.4	0.131	3.20	34	CACA-01-0009-H	W536
17.5x12.5x6	19.1	10.9	8.1	0.120	4.71	4.4	13.8	12.0	0.231	3.30	30	CACA-01-0010-H	W537
19x15x5	21.2	13.0	7.3	0.080	5.34	3.3	9.2	8.0	0.329	3.17	27	CACA-01-0011-H	W539
19x15x10	21.2	13.0	12.3	0.160	5.34	6.6	18.4	16.0	0.329	4.25	24	CACA-01-0012-H	W540
20x12.5x8	22.6	10.3	10.2	0.240	5.10	9.4	27.6	24.0	0.206	4.05	26	CACA-01-0013-H	W538
25x20x10	27.7	17.1	12.9	0.200	7.10	10.9	23.0	20.0	0.568	4.98	18	CACA-01-0014-H	W542
25x16x10	27.9	13.6	12.5	0.360	6.44	17.9	41.4	36.0	0.360	5.00	19	CACA-01-0015-H	W541
30x20x10	32.8	17.6	12.5	0.400	7.85	24.2	46.0	40.0	0.602	5.40	16	CACA-01-0016-H	W543
40x25x10	43.1	22.4	18.5	0.900	10.20	70.8	103.5	90.0	0.980	7.53	11	CACA-01-0020-H	W544
40x32x15	43.3	28.8	0.48	0.480	11.30	41.8	55.2	48.0	1.610	7.37	10	CACA-01-0021-H	W545

Amorphous Core High Permeability Co-based Amorphous Toroidal Core 3

CO-BASED AMORPHOUS CORE

The Cobalt-based amorphous soft magnetic material with almost zero magnetostriction,

high permeability and low core loss, is suitable for such applications as magnetic snubber cores to suppress surge current and magnetic shielding sheet.

We are able to manufacture Co-based amorphous cores in various shapes, including Toroidal core, rectangular core, cut core and customized design cores.

APPLICATIONS

Magnetic amplifier, peak suppressor
Anti-DC meter / Watt-hour meter / Automotive parts
High frequency Switch Mode Power Supplies
Magnetic shield / Sensor / Frequency converter

Common mode choke, differential mode choke
