NANOCRYSTALLINE RIBBONS

Nanocrystalline Ribbon is a new type of Fe-based soft magnetic materials. Traditionally, metal crystalline materials with larger crystal grains were considered to have better magnetic characteristics. However, Nanocrystalline is invented with extremely small crystal grains ( at around 10nm, that’s why it is called Nano materials), considerably improve the magnetic characteristics.

CHARACTERISTICS

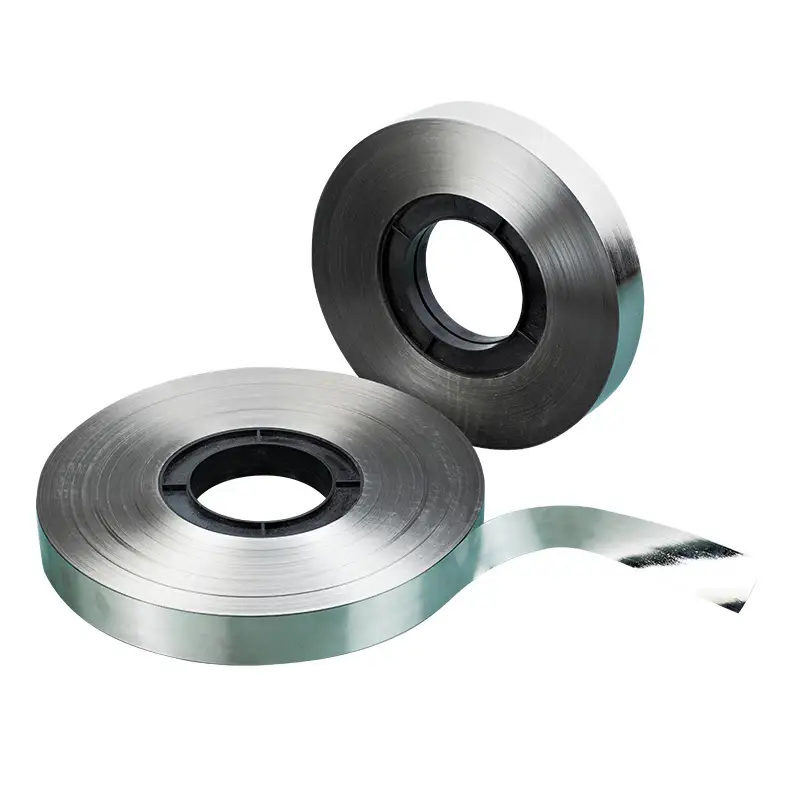

Nanocrystalline ribbons

Nanocrystalline ribbon 1K107 Properties
Saturate induction / Bs (T)	1.25	Magnetostriction / λs	2.0x10⁻⁶
Curie temperature (℃)	570	Density ρ (g/cm³)	7.2
Crystallization (℃)	500	Resistivity δ (μΩNaN)	130
Hardness / Hv	880	Thickness (μm)	28~35

NANOCRYSTALLINE RIBBON 1K107B PROPERTIES

Nanocrystalline ribbons

Thickness (mm)	0.018-0.025
Stack factor σ	＞0.8
Magnetic induction B800/T	≥1.2
Coercivity / Hc （A/m）	≤1.6
Core loss P0.5T/20K/(W/kg)	≤25
Core loss P0.3T/100K/(W/kg)	≤100
Permeability μ （1kHz）	≥80000
Permeability μ （10kHz）	≥60000
Permeability μ （100kHz）	≥10000
Curie temperature （℃）	570
Operating temperature （℃）	‐50~120
Magnetostriction / λs	＜2.0x10-6

STANDARD SIZES FOR 1K107 (CASTED RIBBONS)

Standard Sizes For Transmart Nanocrystalline ribbons

Item	Width （mm）	Thickness（μm）
1	5	28-35
2	8	28-35
3	10	28-35
4	15	28-35
5	20	28-35
6	25	28-35
7	30	28-35
8	35	28-35
9	40	28-35

STANDARD SIZES FOR 1K107B (SLITTED RIBBONS)

Transmart Nanocrystalline ribbons

Item	Width （mm）	Thickness（μm）
1	3	18-25
2	3.2	18-25
3	3.5	18-25
4	4.5	18-25
5	5	18-25
6	6	18-25
7	6.5	18-25
8	8	18-25
9	10	18-25
10	15	18-25
11	20	18-25
12	25	18-25
13	30	18-25

FEATURES

Features Of Nanocrystalline Ribbon: High saturation flux density, high permeability, low core loss, low magnetostriction, good temperature stability. The materials help to make various magnetic components for electronic devices lighter and increasingly compact, energy saving and low noise.
