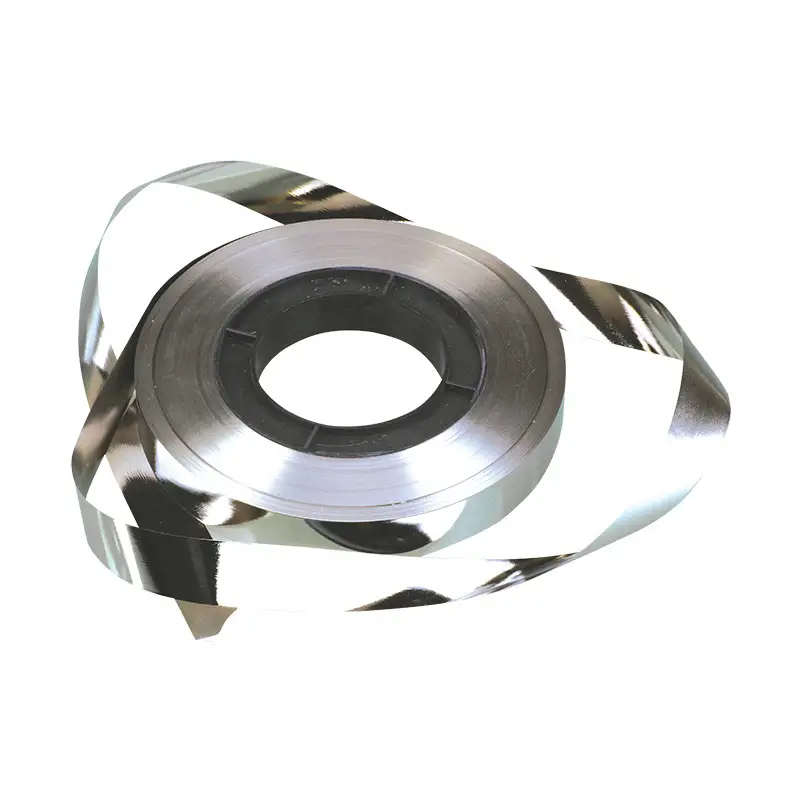

Fe-Based Amorphous Ribbons Soft Magnetic Core Materials 1

Fe-Based Amorphous Ribbons Soft Magnetic Core Materials 2

Fe-Based Amorphous Ribbons Soft Magnetic Core Materials

Brand:

Transmart

Model：:

1K101

MOQ:

100 PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM, ODM, Customized

Inquiry

Write a Review

FE-BASED AMORPHOUS RIBBON PROPERTIES

Fe-based amorphous ribbons

Saturate induction / Bs (T)	1.56	Magnetostriction / λs	27x10⁻⁶
Curie temperature (℃)	400	Density ρ (g/cm³)	7.18
Crystallization (℃)	515	Resistivity δ (μΩNaN）	130
Hardness / Hv	960	Coercivity / Hc (A/m)	＜4

STANDARD SIZES FOR 1K101 AMORPHOUS RIBBON

Fe-based amorphous ribbons

Part No.	Width （mm）	Thickness（μm）
J1K101030282	3	27
J1K101035282	3.5	27
J1K101045282	4.5	27
J1K101050282	5	27
J1K101060282	6	27
J1K101065282	6.5	27
J1K101080282	8	27
J1K101100282	10	27
J1K101150282	15	27
J1K101200282	20	27
J1K101250282	25	27
J1K101300282	30	27
J1K101350282	35	27
J1K101400282	40	27
J1K101450282	45	27
J1K101500282	50	27
J1K101550282	55	27
J1K101600282	60	27
J1K101650282	65	27
J1K101700282	70	27
J1K101800282	80	27

FE-BASED AMORPHOUS RIBBONS

Features: The Fe-based amorphous soft magnetic material features high saturation flux density and lower core loss than that of conventional crystalline soft magnetic materials, such as silicon steel. This makes components more compact and lightweight and result in lower core loss in such applications as the choke coils used in DC-DC converters and the normal-mode choke coils for ECM filters.

APPLICATIONS

1.Inverter reactor
2.Inductor / PFC inductor
3.High frequency transformer
