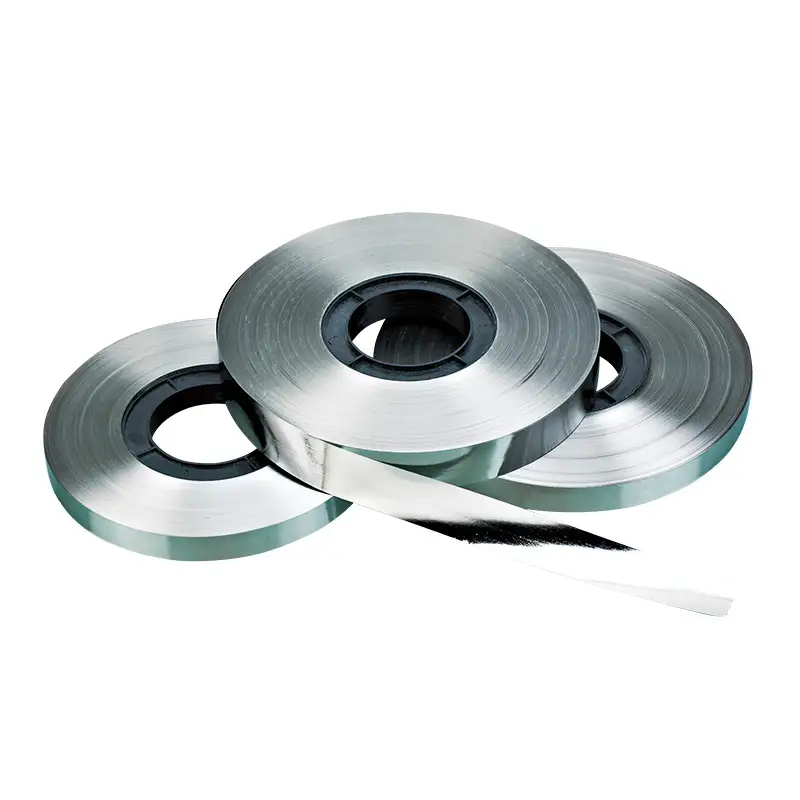

Cobalt-Based Amorphous Ribbons Amorphous Magnetic Material 1

Cobalt-Based Amorphous Ribbons Amorphous Magnetic Material 2

Cobalt-Based Amorphous Ribbons Amorphous Magnetic Material

Brand:

Transmart

Model：:

JCACO Series

MOQ:

100 PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM, ODM, Customized

Inquiry

Write a Review

PERFORMANCE OF COBALT-BASED AMORPHOUS STRIP

Cobalt based Amorphous ribbons

Item	Grade CACO-01	Grade CACO-02
Strip thickness (μm)	18-25	18-25
Fill factor σ	>0.8	>0.8
Magnetic induction B800/T	>0.55	≥0.9
Coercivity Hc (A/m)	<0.13	≤1.0
Iron loss P0.4T/50k (W/kg)	<65
Initial magnetic conductivity µ0	<65	>60000
Maximum magnetic permeability µ max	1000000	1000000
Curie temperature (℃)	255	485
Resistivity (μΩNaN)	120	120
Continuous working temperature (℃)	-40-90	-40-90
magnetostriction λs	0	0

Part No.	Width(mm)	Thickness (μm)
JCACO020232	2	18-25
JCACO030232	3	18-25
JCACO032232	3.2	18-25
JCACO045232	4.5	18-25
JCACO050232	5	18-25
JCACO060232	6	18-25
JCACO065232	6.5	18-25
JCACO080232	8	18-25
JCACO100232	10	18-25
JCACO150232	15	18-25
JCACO200232	20	18-25
JCACO250232	25	18-25
JCACO300232	30	18-25

COBALT BASED

AMORPHOUS RIBBONS

Features: The Co-based amorphous soft magnetic material with almost zero magnetostriction, high permeability and low core loss, is suitable for such applications as magnetic snubber cores to suppress surge current and magnetic shielding sheet.

APPLICATIONS

Magnetic amplifier / Magnetic shield / Current sensor / Common mode choke
Anti-DC meter / Watt-hour meter / Switching transformer
High performance pulse magnetic switch
