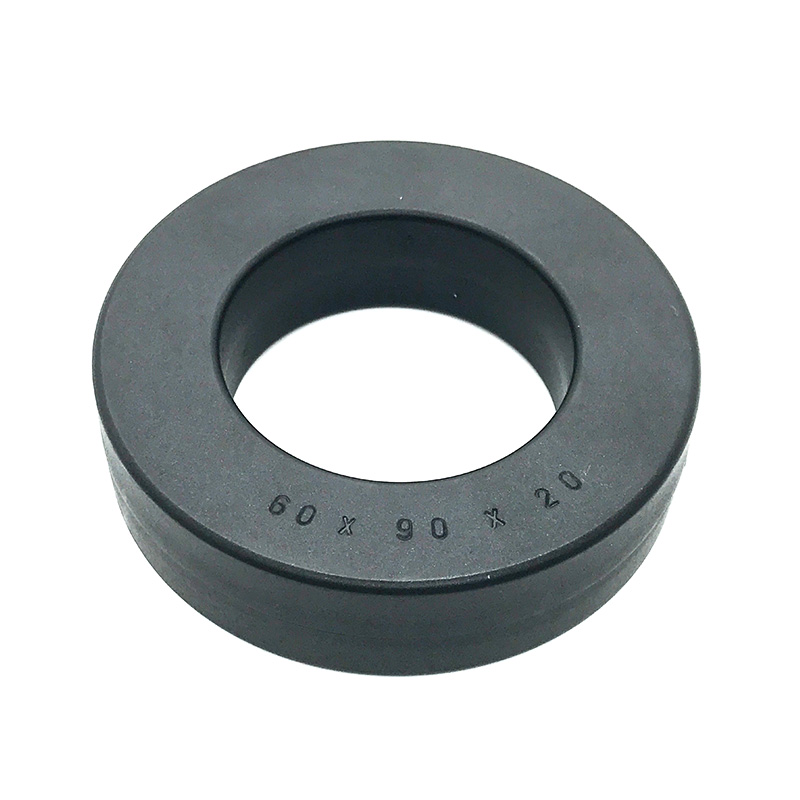

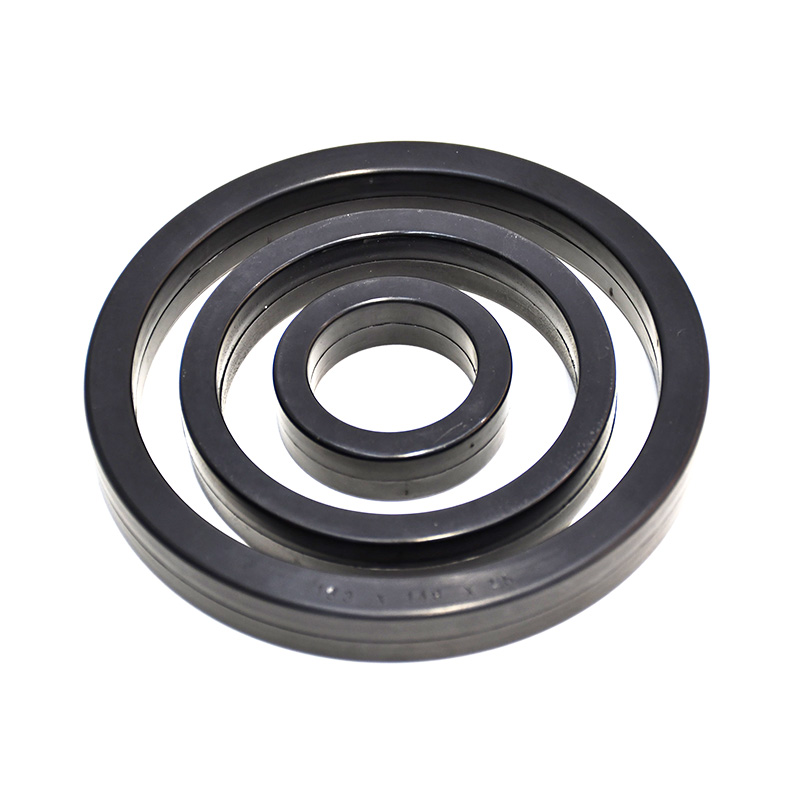

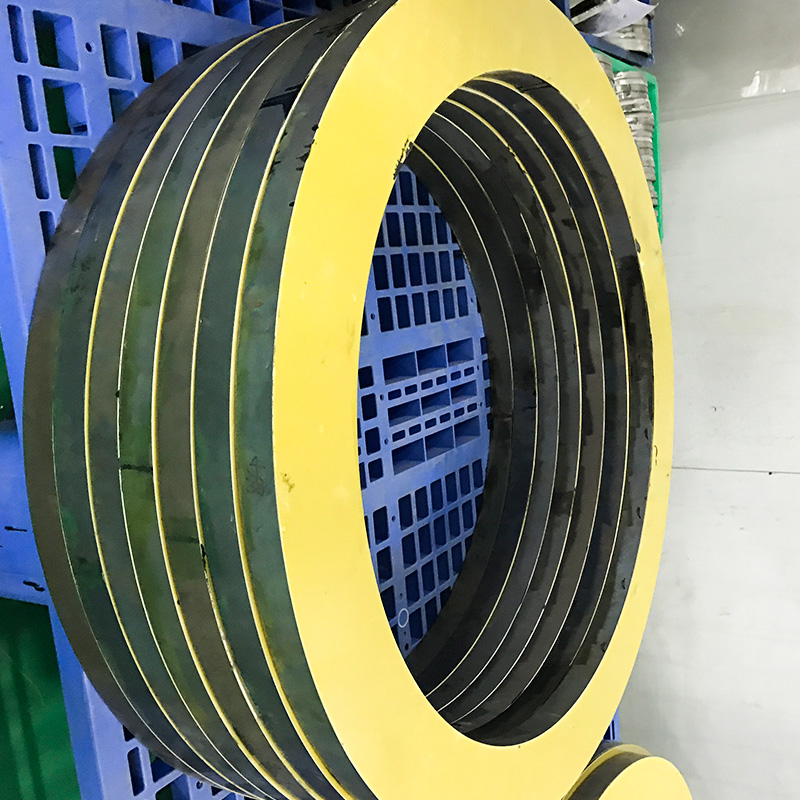

CURRENT TRANSFORMER CORES

The properties of nanocrystalline alloys (Nanocrystalline Cores For Current Transformers) present a unique combination of low losses and high permeability achieved by NiFe alloys and cobalt amorphous alloys, but with a saturation much higher than either of these materials can offer.



Nanocrystalline cores offer better performance than NiFe cores, both in permeability throughout the B/H curve and also higher saturation induction. With respect to silicon steels the saturation is lower but due to the chemistry and thickness, of the ribbon, the power loss is also much better.



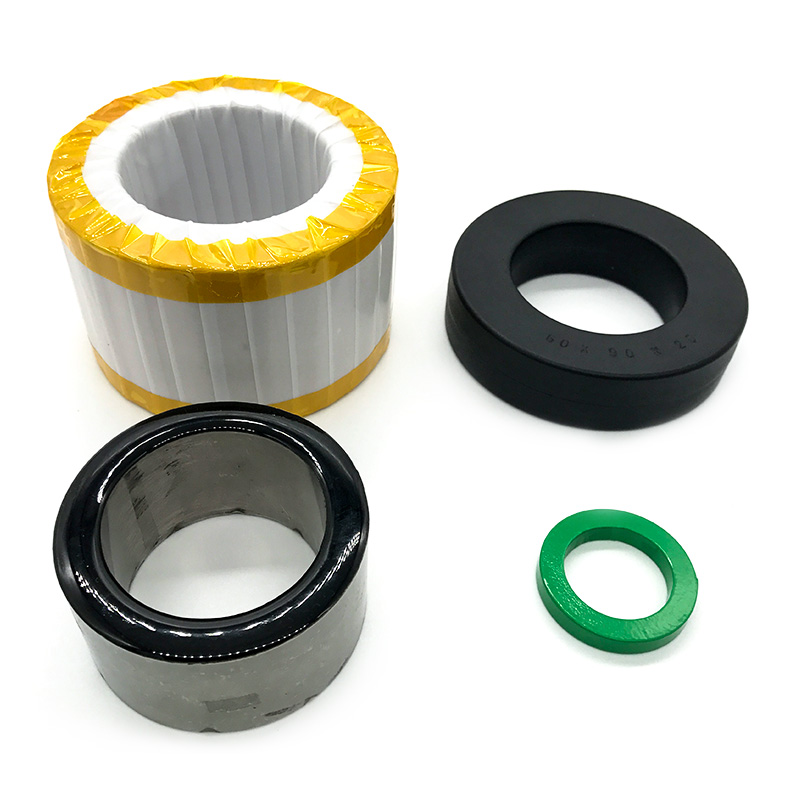

Core finishing



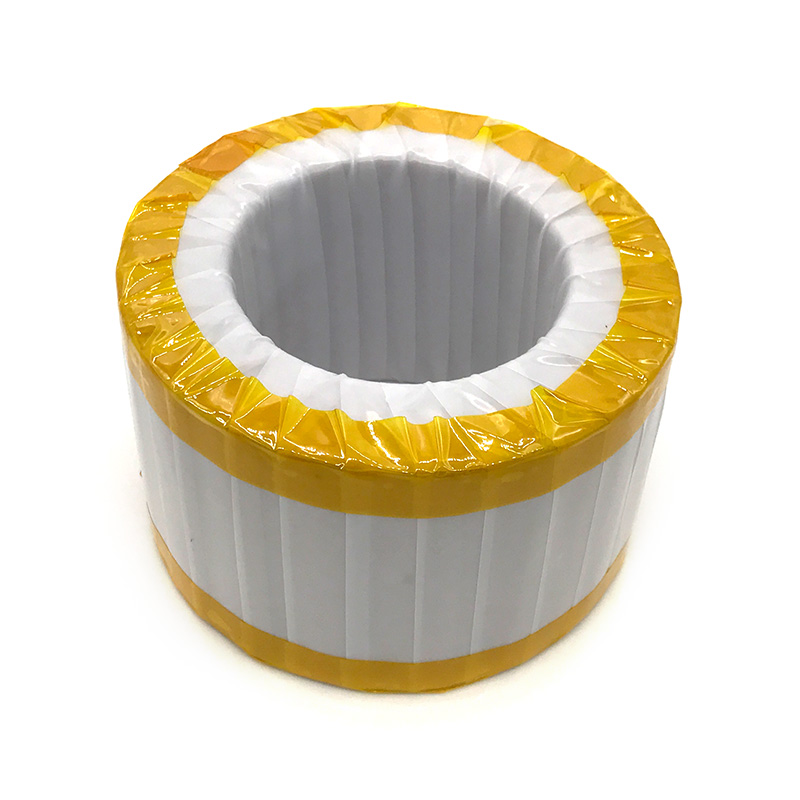

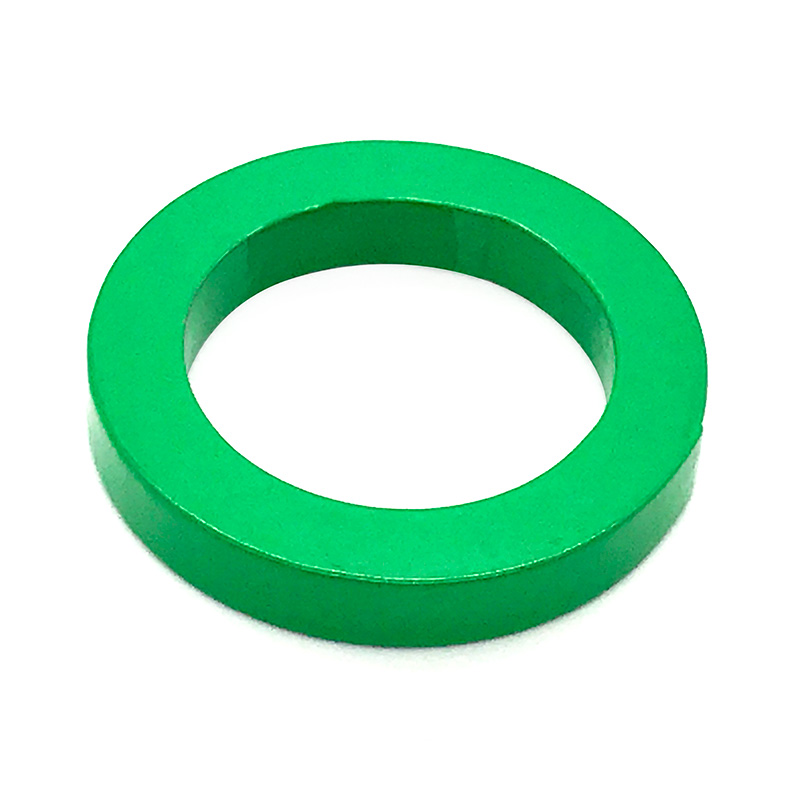

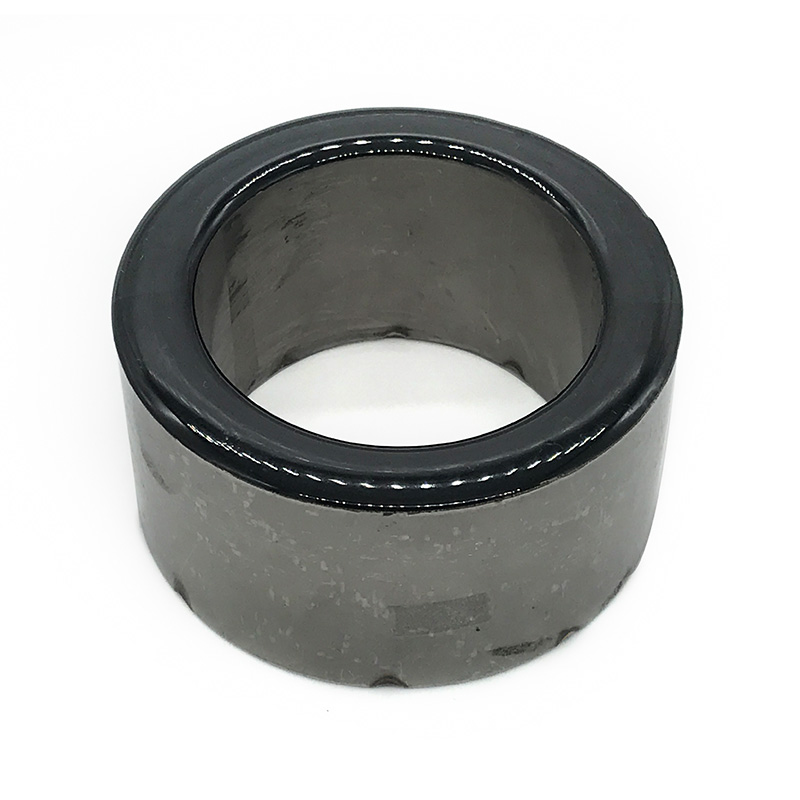

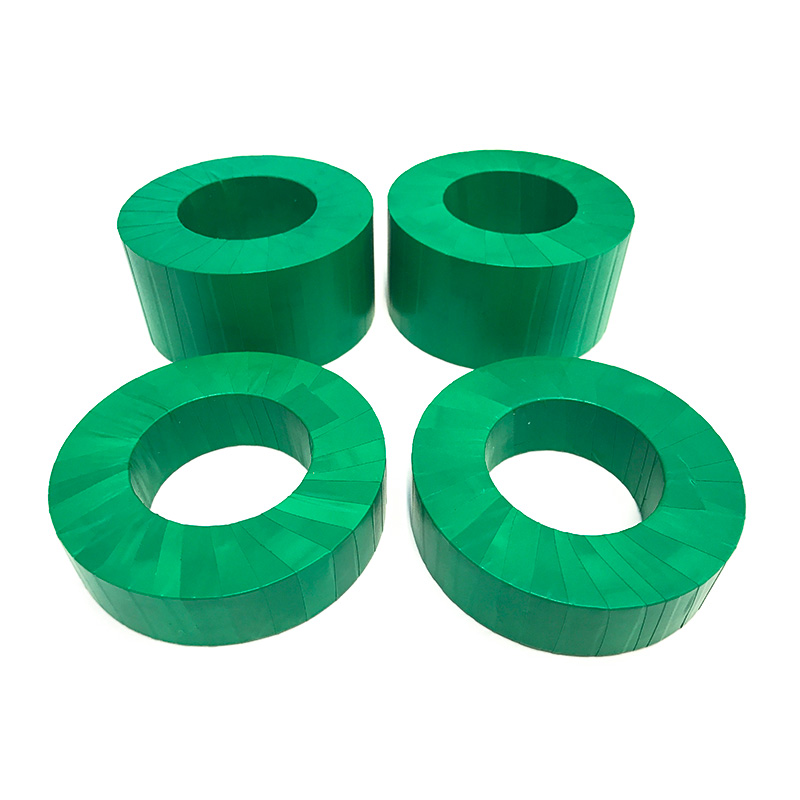

Core finishing can be plastic case , metal case, insulation taped or epoxy coating.

Stainless steel and Aluminum materials are available for metal case.

PBT, PA66 and DMC materials are available for plastic case.

Nanocrystalline Split cores also available to meet the increasing demands of easy assembly Split Transformers.

Other shape cores such as Rectangular cores and Stadium Cores can be customized to your requirements.

MATERIAL PROPERTIES

Current Transformer Cores

Saturate induction / Bs (T)

1.25

Saturation Magnetostriction (λs)

2.0x10⁻⁶

Curie temperature Tc (℃)

570

Density ρ(g/cm³)

7.2

Crystalline temperature Tx (℃)

500

Resistivit δ(μΩNaN)

130

Hardness Hv

880

Thickness (μm)

28~35

Initial permealbility (μ0)

>12x10⁴

Stacking factor

≥0.75

NANOCRYSTALLINE CURRENT TRANSFORMER CORES

Transmart Nanocrystalline Cores For Current Transformers

Transmart
Part number

Core dimensions


Weight
  mFe
     g

Case material

Core dimensions
da x di x h
mm x mm x mm

Finished core size OD     ID      H
mm x mm x mm

NR-0004

19x14x6.5

22.2x12x9

4.8

PBT

NR-0007

21x16x10

23.8x14.5x12.5

8.3

PBT

NR-0008

20x14x10

23.5x12.5x12.5

9.1

PBT

NR-0012

26x19x10

29x16.5x12.5

14.0

PBT

NR-0014

40x30x10

43x27.5x12.5

32.0

DMC

NR-0017

40x30x15

43x27.5x17.5

47.0

DMC

NR-0019

83x38x40

88x34x45

967.0

DMC

NR-0020

71x39x33

76x35x38

516.0

DMC

NR-0021

70x42x30

75x38x35

418.0

DMC

NR-0022

68x45x30

73x41x35

347.0

DMC

NR-0023

68x45x25

73x41x30

289.0

DMC

NR-0024

78x60x25

83x56x30

276.0

DMC

NR-0025

80x60x30

85x56x35

402.0

DMC

NR-0026

82x63x30

87x59x35

396.0

DMC

NR-0027

70x40x25

75x36x30

367.0

DMC

NR-0028

82x45x50

87x41x55

1043.0

DMC

NR-0029

82x45x30

87x41x35

674.0

DMC

NR-0030

85x45x60

90x40x65

1492.0

DMC

NR-0031

85x50x30

90x46x35

678.0

DMC

NR-0032

80x50x35

85x46x40

653.0

DMC

NR-0033

86x60x40

91x56x45

725.0

DMC

NR-0034

78x60x35

83x56x40

386.0

DMC

NR-0038

115x85x20

120x81x25

533.0

DMC

NR-0119

78x60x30

83x56x35

357.0

DMC

NR-0120

88x50x40

93x46x45

1003.0

DMC

NR-0121

120x95x20

125x91x25

514.0

DMC

NR-0122

83x30x50

88x26x55

1432.0

DMC

NR-0123

80x50x30

85x46x35

560.0

DMC

NR-0125

80x50x25

85x46x30

467.0

DMC

NR-0126

90x73x30

95x69x35

398.0

DMC

NR-0128

90x43x40

95x39x45

1196.0

DMC

NR-0129

88x60x35

93x56x40

694.0

DMC

NR-0130

110x90x45

115x86x50

861.0

DMC

NR-0131

100x75x20

105x71x25

419.0

DMC

NR-0137

115x85x25

120x81x20

718.0

DMC

NR-0138

120x95x15

125x91x20

386.0

DMC

NR-0139

120x85x20

125x81x25

687.0

DMC

NR-0078

265x210x10

271x203x17

1249.0

Stainless Steel

NR-0079

220x180x20

227x172x25

1530.0

Stainless Steel

NR-0080

220x180x30

227x172x35

2295.0

Stainless Steel

NR-0086

560x470x12

572x458x18

5318.0

Stainless Steel

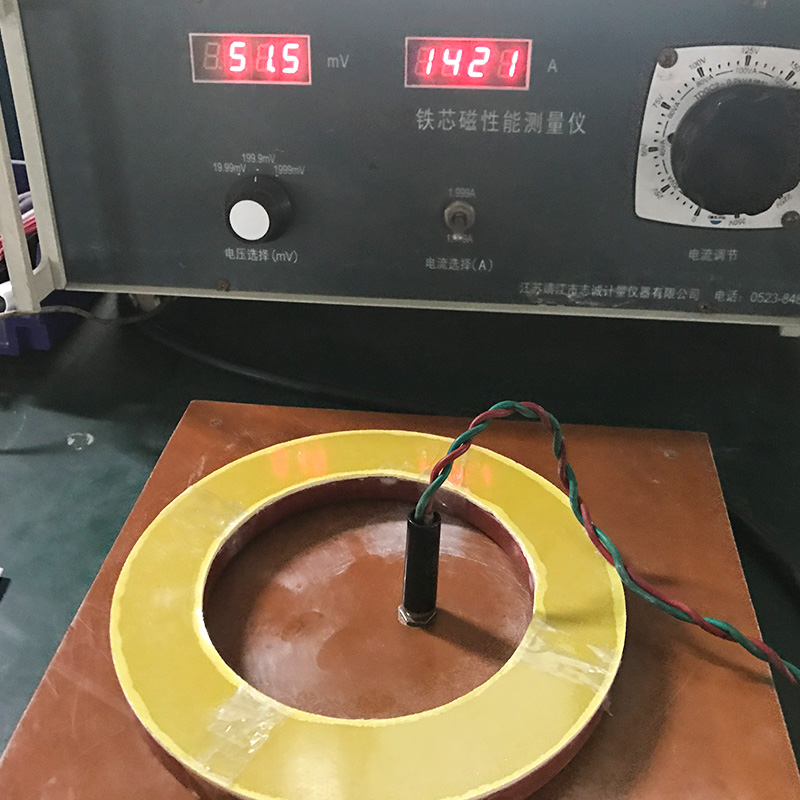

NANOCRYSTALLINE CT CORE B-H DATA TABLE

Current Transformer Cores

H (mA/cm)

B (Gs)

μ ( x104)

H (mA/cm)

B (Gs)

μ ( x104)

H (mA/cm)

B (Gs)

μ ( x104)

0.39

50

10.20

0.77

100

10.33

1.39

200

11.45

1.85

300

12.90

2.27

400

14.02

2.62

500

15.19

2.87

600

16.64

3.16

700

17.63

3.38

800

18.83

3.61

900

19.84

3.81

1000

20.89

4.01

1100

21.83

4.38

1300

23.62

4.75

1500

25.13

5.06

1700

26.74

5.35

1900

28.26

5.57

2100

30.00

5.86

2300

31.23

6.11

2500

32.56

6.34

2700

33.89

6.57

2900

35.13

6.82

3100

36.17

7.05

3300

37.25

7.28

3500

38.26

7.56

3700

38.95

7.85

4000

40.55

8.22

4300

41.63

8.64

4600

42.37

9.04

4900

43.13

9.41

5200

43.97

9.84

5500

44.48

10.29

5800

44.85

10.74

6100

45.20

11.06

6300

45.33

11.43

6500

45.25

11.97

6800

45.21

12.51

7100

45.16

12.85

7200

44.59

13.31

7400

44.24

13.79

7600

43.86

14.36

7800

43.22

14.98

8000

42.50

15.66

8200

41.67

16.43

8400

40.68

17.2

8600

39.79

18.31

8800

38.25

19.47

9000

36.78

20.15

9100

35.94

20.98

9200

34.90

21.8

9300

33.95

22.74

9400

32.89

23.68

9500

31.93

24.73

9600

30.89

25.95

9700

29.75

27.43

9800

28.43

29

9900

27.17

30.7

10000

25.92

32.63

10100

24.63

35.3

10200

22.99

38.17

10300

21.47

41.47

10400

19.96

45.36

10500

18.42

50.25

10600

16.79

53.67

10700

15.87

58.59

10800

14.67

62.5

10900

13.88

68

11000

12.87














APPLICATIONS

Nanocrystalline Cores For Current Transformers

Current transformers with 0.2, 0.2s, 0.1 accuracy class. Bushing current transformer for gas insulated or

oil-immersed switchgear . Lv, Mv & Hv switchgear, and other apparatus in electric power transmission.

Transmart Current transformer core manufacturer

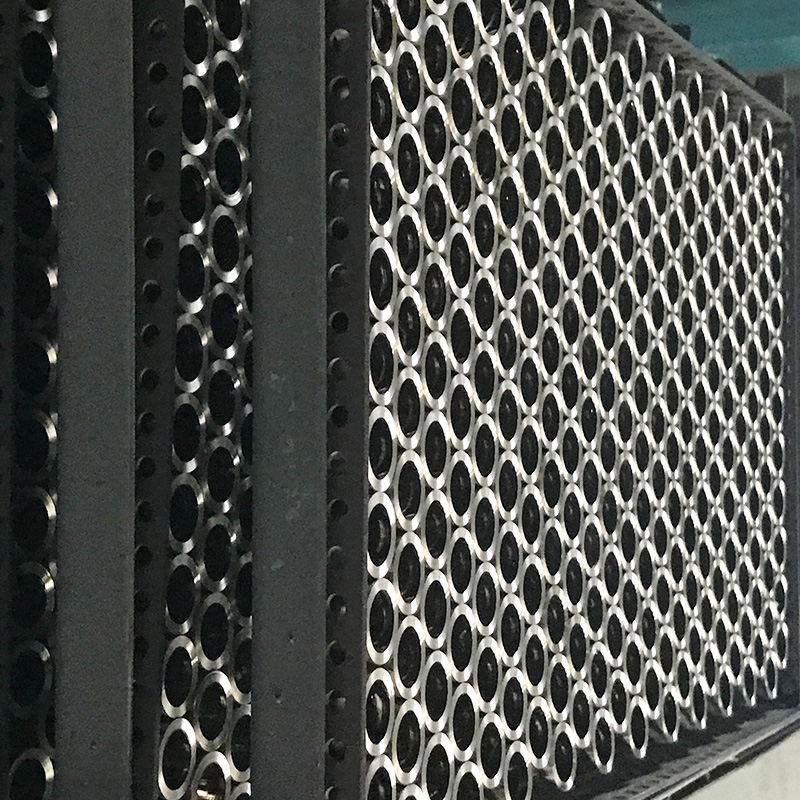

PRODUCT DISPLAY

Current Transformer Cores Display

这里可以自定义设置

Current Transformer Cores Specification
