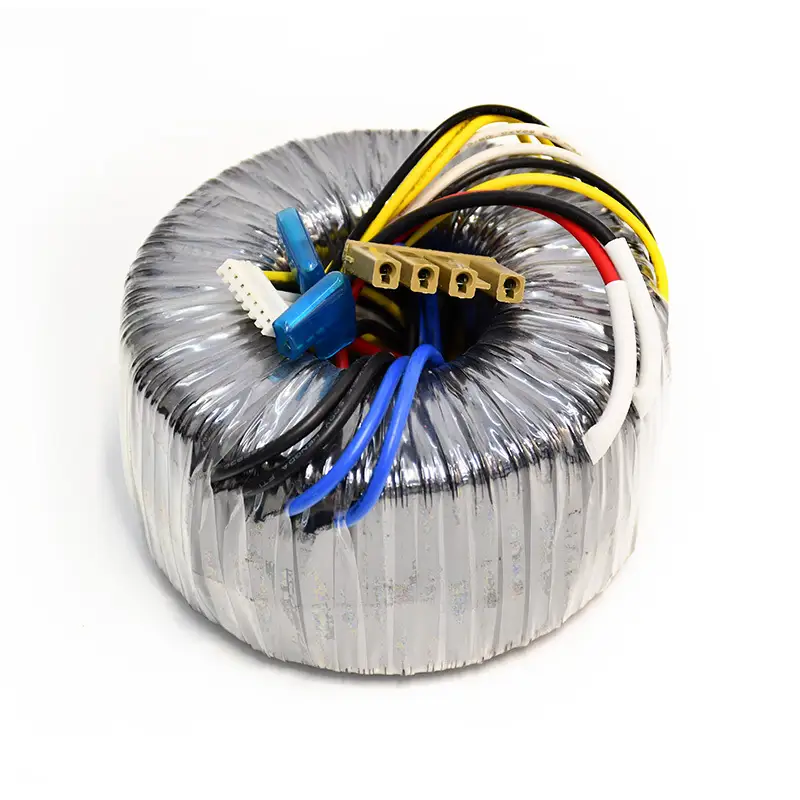

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 1

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 2

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 3

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 4

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers

Brand:

Transmart

Model：:

Rated Power from 20VA till 25000VA

MOQ:

150 PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM, ODM, Customized

Inquiry

Write a Review

TOROIDAL POWER TRANSFORMER STANDARD SERIES SPECIFICATIONS

Toroidal Transformers

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 5

TOROIDAL TRANSFORMERS

Transformers based on toroidal cores. Transmart has full control from core to finished torroidal power transformer manufacturing. Toroidal powder transformers are considerably smaller and lighter than similar conventionally

EI transformers. The construction is ideal in installations which require low magnetic radiation and

very low weight, flexible dimensions and optimum conditions between dimensions are preferable.

A toroidal power transformer is a type of electrical transformer that has a toroidal or doughnut-shaped core made of a ferromagnetic material such as iron. The primary and secondary windings are wrapped around the core in a circular fashion, with no air gaps between them.

The toroidal shape of the core provides several advantages over traditional transformer designs. First, it reduces the amount of magnetic flux leakage, resulting in a more efficient transfer of power between the primary and secondary windings. Second, the toroidal shape allows for a more compact and lightweight design compared to other transformer types. Additionally, the toroidal shape allows for better thermal dissipation, as heat can be more easily dissipated through the surface area of the core.

Rated Power（VA）	Voltage regulation（%）	Efficiency（%）	Height（mm）	OD（mm）	Weight（KG）
20	18	78	28	73	0.5
30	16	83	30	80	0.6
50	15	85	35	90	0.75
80	12	86	35	96	1.1
100	11	88	42	100	1.3
120	9.6	89	43	105	1.5
150	7.3	90	45	115	1.85
200	6.2	91	53	123	2.3
250	5.6	92	53	128	2.6
300	5.3	93	55	135	3
400	4.6	94	60	140	3.8
500	4.3	95	65	145	4.5
600	4.1	95	70	150	5
800	4	95	80	160	7
1000	3.8	96	85	160	8
1200	3.3	96	90	165	8.5
1500	3	96	95	170	9.5
2000	2.9	96	100	170	12
2500	2.8	97	105	180	14
3000	2.5	97	110	200	17
3500	2.3	97	115	210	19
4000	2.2	97	120	220	21
5000	2.1	98	130	225	25
6000	2	98	140	230	28
8000	1.9	98	160	260	35
10000	1.8	98	170	280	45
12000	1.8	99	180	310	50
15000	1.7	99	200	335	63
18000	1.7	99	220	360	78
20000	1.6	99	230	380	88
25000	1.6	99	245	400	106

APPLICATIONS

Common Applications Of Toroidal Power Transformers Include:

Lighting system / Power converter, charger/ Audio amplifier, public broadcasting and Security power system
UPS, energy storage, inverter, Automatic door, elevator control,PV / Wind power control.

● Audio equipment: Toroidal transformers for audio are often used in high-end audio equipment, such as amplifiers and preamplifiers, due to their ability to provide clean power with low electromagnetic interference (EMI) and radio frequency interference (RFI) noise.

● Renewable energy systems: Toroidal transformers are used in renewable energy systems, such as wind turbines and solar inverters, to convert the energy generated by these sources into usable electrical power.

● Lighting systems: Toroidal transformers are used in lighting systems, such as LED drivers, to regulate the voltage and current flowing to the lights.

Toroidal power transformers are a reliable and efficient choice for a wide range of electronic applications that require power transformation.

Electric Toroidal Power Transformer Custom Toroidal Audio Transformers 6

PRODUCT PARAMETERS

Custom Toroidal Power Transformers

Rated Power	20-25000VA
Input Voltage	110V，120V，220V，230V，240V，50/60Hz
Output Voltage	According to customer requests
Dimensions	According to customer requests
Mounting	1. Metal plate + Rubber washer + screw
Mounting	2. Center epoxy potted + screw
