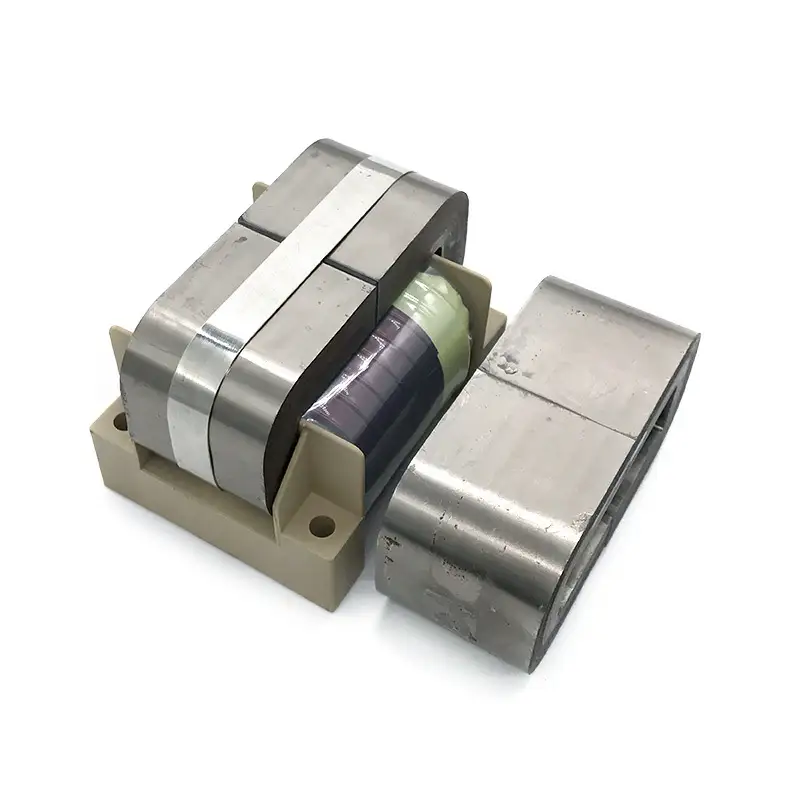

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor 1

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor 2

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor 3

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor 4

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor 5

Custom Amorphous C Core Metal Core For Power Transformer Or Inductor

Brand:

Transmart

Model：:

CACC Series, CACCE Series

MOQ:

100 PCS per item

Origin:

China Foshan

Lead time:

4-15 Working days

Payment:

L/C D/A D/P T/T Western Union

Service:

OEM, ODM, Customized

Inquiry

Write a Review

AMORPHOUS THREE PHASE E-CORES SPECIFICATION

Transmart Amorphous C core - Customized sizes available upon request


Part Number	a (mm)	±	b(mm)ref	c(mm)ref	d (mm)	±	e (mm)	±	f (mm)	±	Mass (g) ref
CACCE-47	15	0.8	25	47	30	0.5	95	1	77	2	891
CACCE-200	22	0.8	25	70	30	0.5	116	2	114	3	1743
CACCE-273	24	0.8	38	85	40	1	148	2	133	3	3139
CACCE-300	25	0.8	25	78	40	1	125	2	128	3	2889
CACCE-331	22	0.8	40	87	50	1	146	2	131	3	3643
CACCE-900	25	0.8	40	118	50	1	155	2	167.5	3	5016
CACCE-950	32	1	40	64	50	1	176	2	128	3	5132
CACCE-1200	30	1	55	120	35	0.5	200	2	180	3	4832
CACCE-1406	35	1	45	120	85	1.5	195	2	190	3	13435
CACCE-3000	50	1	64	100	80	1.5	278	2	200	3	20311

AMORPHOUS C CORE

Amorphous C cores are suitable for power transformer or inductor ( choke coil)

especially used in high-frequency range.

They contribute to downsize, improve efficiency for the transformer and inductor.

APPLICATIONS

Amorphous C core

1.High frequency transformers for X-ray CT, induction heating apparatus, welding machine,

communication equipment etc.
2.Inductors ( choke coils) for power conditioner of photovoltaic, wind power generator, fuel cell.
3.Inductors for boost/down converter of HEV, FCV, UPS, etc.
4.Audio transformer.
