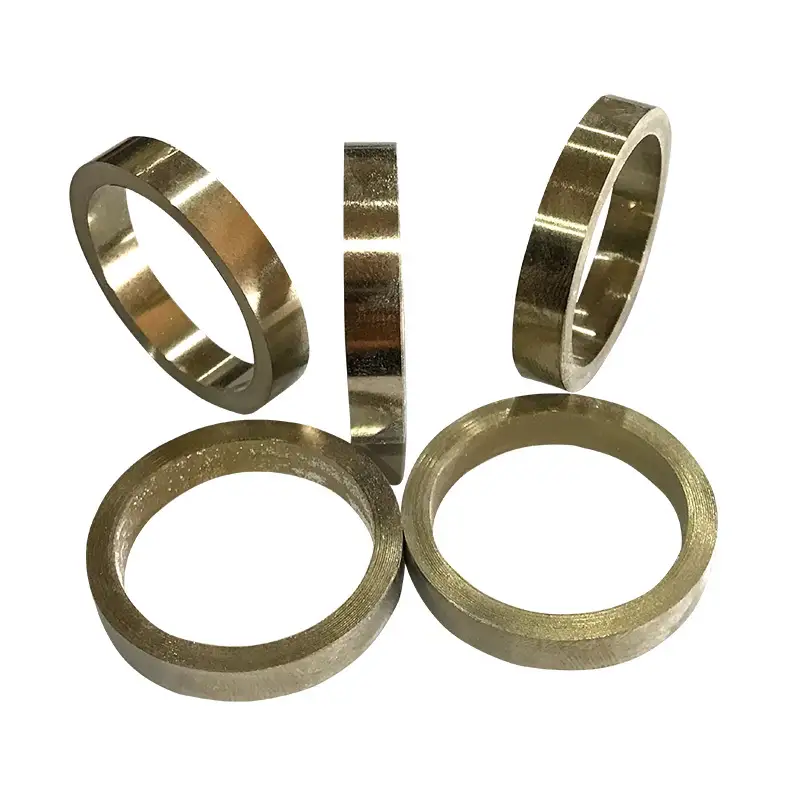

High Efficiency Mumetal Cores with Nickel Iron material
5.0
Brand:
Transmart
Model：:
1J85, 1J55, 1J50
MOQ:
300 PCS per item
Origin:
China Foshan
Lead time:
4-15 Working days
Payment:
L/C D/A D/P T/T Western Union
Service:
OEM, ODM, Customized
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
MATERIAL CHARACTERISTICS
Customized sizes available upon request
Base Material | Nickel Iron material | ||||
Ribbon Thickness | 60-300 μm | ||||
Ribbon Density | 8.250-8.745 g/cm3 | ||||
Curie Temperature | 400-410℃ | ||||
Continuous Service Temperature | 150℃ | ||||
Code | Material | Band Thickness (mm) | Permeability μ4 | Permeability μmax | Saturation Induction (T) |
1J85 | 72-83% Ni | 0.05-0.2 | 60000-240000 | 150000-350000 | 0.6-0.8 |
1J55 | 54-68% Ni | 0.05-0.2 | 40000-80000 | 100000-160000 | 1.2-1.5 |
1J50 | 45-50% Ni | 0.1-0.2 | 10000-12000 | 90000 | 1.5-1.6 |
MUMETAL CORES
Mumetal is a NiFe alloy with very high permeability, so it is also called permalloy.
High efficiency / Low temperature rise
Smaller component size / Higher power throughput
High temperature operation
APPLICATIONS
Current Transformers / lPower Transformers
Pulse Transformers / Current Sensors
Earth Leakage Circuit Breakers / Measuring Industry
Features 01
High permeability
Features 02
Low magnetization in higher induction
Features 03
High saturation flux density 0.6T-1.5T
Features 04
Completed with varnished form, impregnated form and with plastic/metal case
Mumetal Cores Specification
