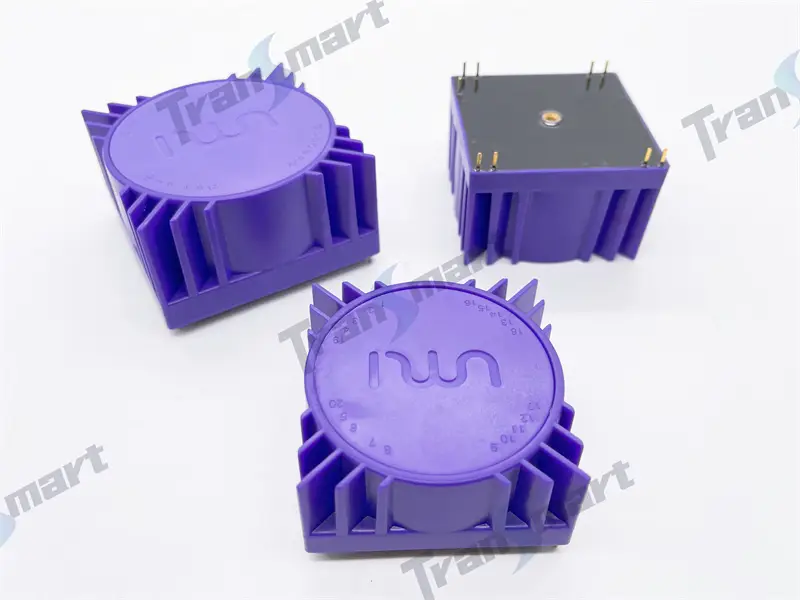

PCB Mounted Toroidal Transformer
5.0
Brand:
Transmart
Model：:
TE, TU, TEMC
MOQ:
100 PCS per item
Origin:
China Foshan
Lead time:
4-15 Working days
Payment:
L/C D/A D/P T/T Western Union
Service:
OEM, ODM, Customized
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
TRIPLE-SHIELDING
Technology
Thanks to its advanced triple shielding technology, it can effectively eliminate
any interference that might affect sound quality. Electrostatic shielding
prevents high-frequency noise, electromagnetic shielding blocks environmental
EMI.Magnetic shielding further isolates the transformer, reducing its
magnetic leakage by 80% and preventing any disturbance that could affect
delicate audio signals, eliminating noise or hum in high-end devices.
They deliver flawless power for circuits, aligning with stringent EMC standards
to eliminate any possible interference and contamination at the source.
PERFECT
Design Structure
Crafted for perfection, it features a high-permeability, low-core-loss quality
toroidal core, premium Oxygen-free copper coils, an epoxy potting and pin
design. This trio ensures power stability, working efficiency, and exceptional
voltage regulation capabilities, offering the ultimate audio fidelity
experience-pure, dynamic, and superior.
Boasting superior triple-shielding technology and a perfectly designed
structure pushed to the limits.
Characteristic 1
The fully enclosed printed circuit board is directly welded and installed with beautiful appearance
Characteristic 2
Small installation height, compact structure, solid, earthquake-resistant, moisture-proof, flame-retardant, and high electrical strength
Characteristic 3
It has the functions of magnetic shielding, electrostatic shielding and electromagnetic shielding, which can significantly suppress common mode interference, reduce electromagnetic interference and reduce magnetic flux leakage generated during work
Characteristic 4
Using high-quality silicon steel ring-shaped iron core, it has high efficiency, small magnetic leakage, low noise and small no-load current
Characteristic 5
Built-in temperature protector, low temperature rise, safer to use
Characteristic 6
Triple shielding, suitable for high-precision equipment power supply applications
TECHNICAL INDEX
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade (130°C)
Insulation resistance: greater than 100MΩ under normal conditions
Work temperature: -30°C ~ +40°C
Relative humidity: not greater than 90% when the temperature is 40°C
Frequency range: 47Hz ~ 63Hz
Atmospheric pressure: 860~1060mbar
Electrical strength: P1/P2: 600V AC, S1/S2: 600V AC, P/S: 4000V AC
Electric shock resistance: can withstand pulse 6kV/50μ S for 20 consecutive times
Can withstand power frequency 4000V/1 minute
Power ratings of 10 VA, 15 VA, 25 VA, 35 VA, 50 VA are available
TE Series
Electromagnetic Shielding
TU Series
Electromagnetic Shielding
Magnetic Shielding
TEMC Series
Electromagnetic Shielding
Magnetic Shielding
Electrostatic Shielding
ELECTRICAL PARAMETERS
The following parameters are typical values and actual values will be subject to product testing
Primary Voltage | Double110V | 115V | 120V |
Power | 10VA, 15VA, 25VA, 35VA, 50VA | ||
Primay Voltage Range | ±10% | ||
| Voltage Regulation | ≤10% | ||
| Temperature Rising | ≤20% | ||
No Load Loss | ＜0.6W | ||
*Primary Working Voltage: Double110/115/120 (can be customized according to customer's requirements).
TEMC Series
- PCB Mounting Toroidal Transformer Mechanical Data
Power | Dimension LxWxH (mm) | Pin Layout XY | Nut | Pin Layout Pin Size (mm) | Pin Availability | |
| 10VA | 55.5x55.5x27.0 | 50.80 | M4X4 | 1.0x0.5 | 1-18 | |
| 15VA | 60.5x60.5x27.3 | 55.88 | M4X4 | 1.0x0.5 | 1-20 | |
| 25VA | 60.5x60.5x38.5 | 55.88 | M4X4 | 1.0x0.5 | 1-20 | |
| 35VA | 72.0x72.0x37.5 | 66.04 | M5X5 | ∅1.3 | 1-26 | |
| 50VA | 82.9x82.9x39.9 | 76.20 | M5X5 | ∅1.3 | 1-34 |
Dimension (Unit:mm)
Example:TEMC-35VA
Schematic diagram:
Standard output parameter table
Factory full load voltage shall prevail
Input Primary | Output Secondary | |||
| Pin | Voltage | Pin | Open Circuit Voltage | Full Load Voltage |
3-4 5-6 1:shiel | 110V*2 | 11-12 13-14 | 7.1V*2 | 6.0V*2 |
| 8.4V*2 | 7.0V*2 | |||
| 10.5V*2 | 9.0V*2 | |||
| 14.3V*2 | 12.0V*2 | |||
| 17.7V*2 | 15.0V*2 | |||
| 21.3V*2 | 18.0V*2 | |||
| 24.8V*2 | 21.0V*2 | |||
| 28.3V*2 | 24.0V*2 | |||
| 32.0V*2 | 27.0V*2 | |||
